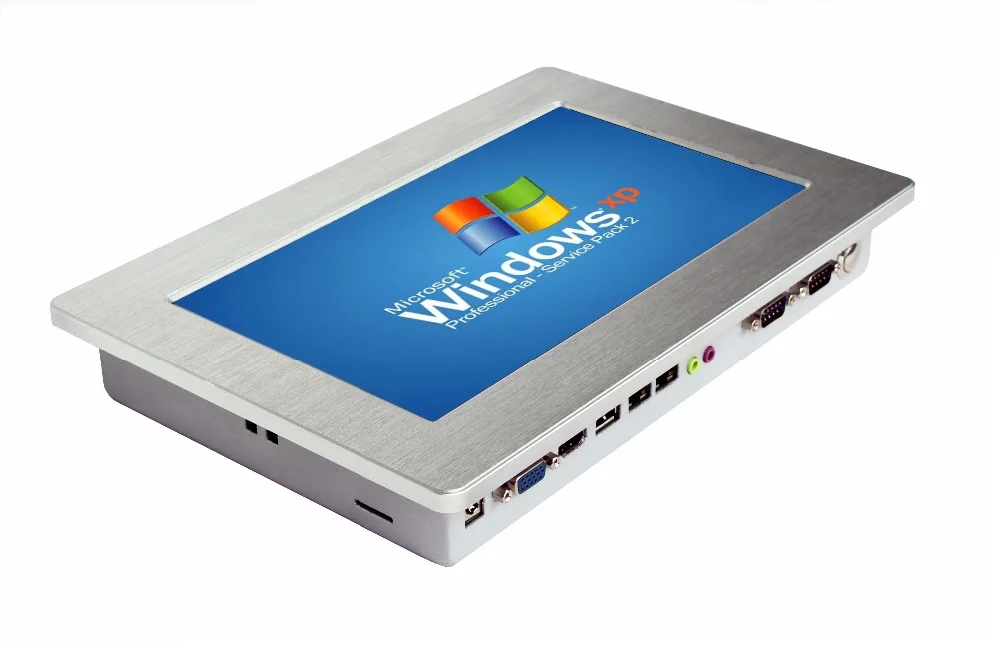

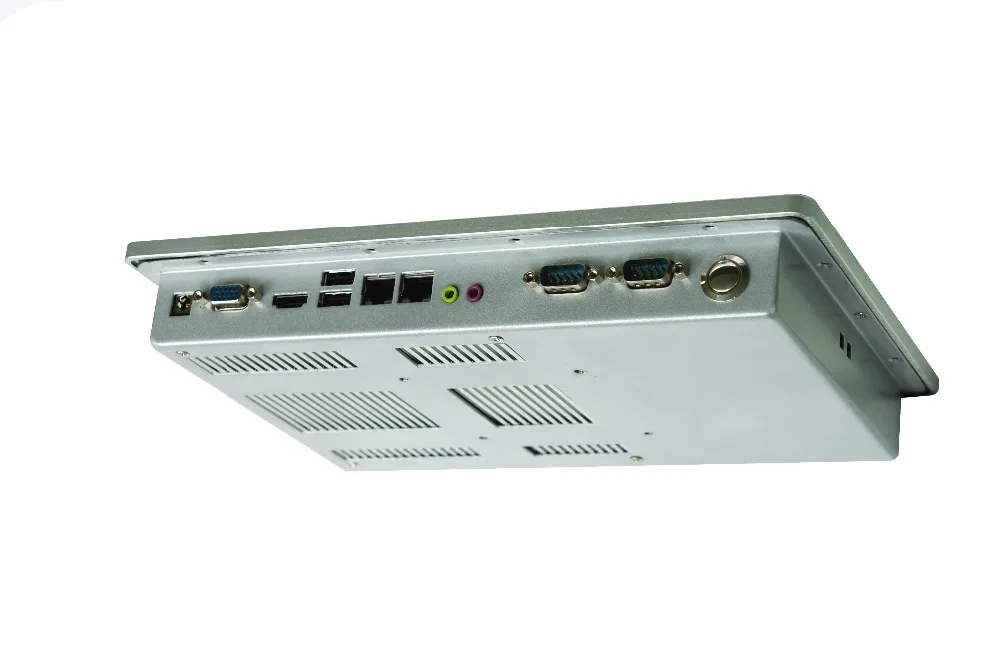

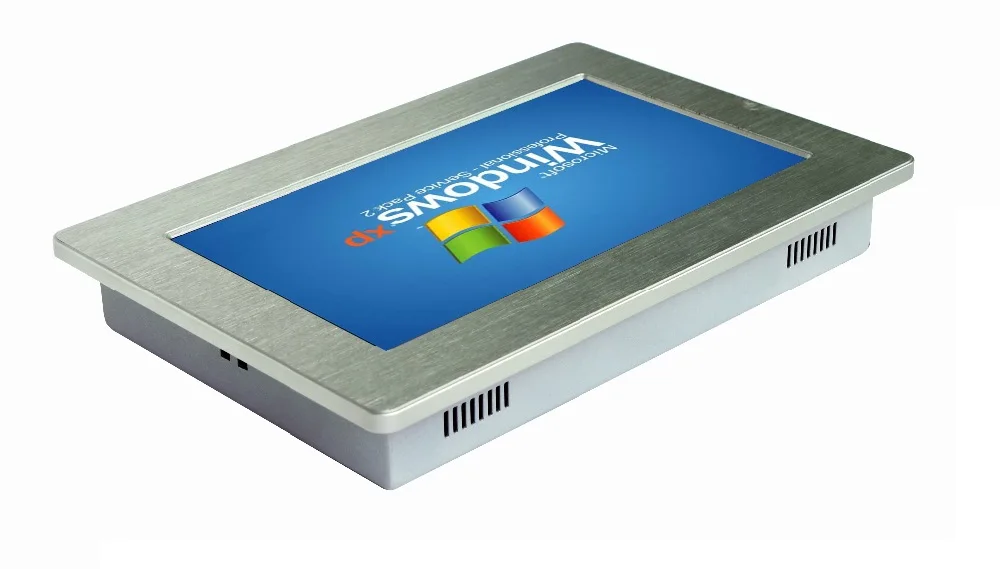

10 inch intelligent TFT LCD display touch screen MINI fanless industrial tablet pc

10 inch intelligent TFT LCD display touch screen MINI fanless industrial tablet pc
  • Продавецquickresponsefireprotection.us
  • Список ценUS $400.00piece
  • Продажная ценаUS $400.00piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,5 (862)

Oписание продукта





Advanrage:

1. Fanless cooling system.

2. dual-core Intel Atom D2550 processor 1.86 GHz .

3. Built-in 802.11a/b/g/n/ac Wireless LAN+ Blue Tooth

4. 9V~30V wide range DC power input

5.2GB DDR3L Onboard RAM

6.Resistive Touch Supports Touch Function








Specifications



Model

TPC-101B

screen size

AUO 10.1inch

Display area

152.4x 91.44mm

Resolution

1280x600

Touch panel

AMT Touch panel of resistance

Chipest

Intel Atom D2550+ NM10

CPU

Intel ATOM D2550 1.86G

RAM

DDR3   2Gb  MAX 8Gb

SSD

SSD 32GB

System

Windows XP/win7

LAN

2*RJ45  Intel RTL8111C 1000Mbps

USB 2.0

4

Serial Ports

2xCOM(2xRs232)

VGA

1

HDMI

1

Microphone Input/output

1 (optional)

Wireless 3G/WIFI

1 (optional)

Operating Humidity

5 ~ 90% (non-Condensing)

Operating Temp

-20 ~ +70°C

Storage Temp

-40~ +80°C

Color

white

Power

110V-240V AC

Power adapter

12V  DC

Weight

Warranty

Certifications

3.25 kg KG/set

12 month

CE,FCC,ROHS







Product Effects









1234







Personalized install





 VESA Mount:  100mmx100mm or 75mmx75mm                 Support for personalized installation












Test&production:





9





Applications





8



8
